| 首页 > 监控器材 > AVENIR > manual zoom type > SR12575 |
| Model No | SR12575 | ||
| Image Format Cover | 2/3" ～ 1/3" | ||
| 焦点距离 | 12.5 ～ 75 mm | ||
| MAX光圈比率 | 1 : 1.8 | ||
| Zoom Ratio 变焦倍数 | 6.0 倍 | ||
| Iris光圈 | Control Method | 手动 | |
| Iris Range | F1.8 ～ Close | ||
| 速度 | * * * | ||
| Input Voltage & Current | * * * | ||
| Sensitivity Adjustment | * * * | ||
| Focus 焦点 | 控制方式 | 手调 | |
| Zoom 变焦 | 控制方式 | 手调 | |
| 视角 (D×H×V) |
1/3 inch | Wide | 26.6° × 21.2° × 16.1° |
| Tele | 4.5° × 3.6° × 2.7° | ||
| 1/2 inch | Wide | 34.9° × 28.3° × 21.4° | |
| Tele | 6.0° × 4.8° × 3.6° | ||
| 2/3 inch | Wide | 47.9° × 38.7° × 29.3° | |
| Tele | 8.2° × 6.6° × 4.9° | ||
| 1 inch | Wide | * * * | |
| Tele | * * * | ||
| Minimum Object DistanceMIN可视距离 | 1.0 m | ||
| Back Focal Length 后焦长度 | 17.19 mm | ||
| Effective Diameter | Front 前部 | φ44.0 m | |
| Rear 后部 | φ13.0 mm | ||
| Filter Screw size | M49.0 P=0.75 | ||
| Mount | C / 17.526mm | ||

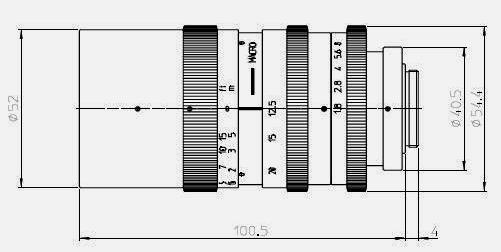

| Mechanical Dimension(D×L)机械尺寸 | φ54.4mm × 100.5mm | ||
| Weight重量 | 368.0g | ||
| 应用温度环境 | -10°C ～ +50°C (+14°F ～ +122°F) | ||
